Steps To Configure WLS Plug-in in IPlanet Web Server

Steps To Configure WLS Plug-in in IPlanet Web Server

  • Install SunOne Web-Server.
  • Install WLS with the Plugin Option enabled.This option installs WLS with all the plugins files required for supported web-servers.

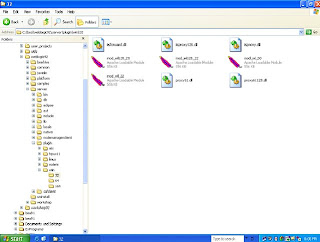

  • Refer BEA_HOME\weblogic92\server\plugin for plugin files.



  • Navigate to appropriate OS and copy the IPlanet plug-in files.
  • Plug-in file for (IPlanet)Sun Server is proxy61.dll.
  •  Paste the proxy61.dll file in Sun Server’s plugin\lib folder(SUNHOME\WebServer6.1\plugins\lib).

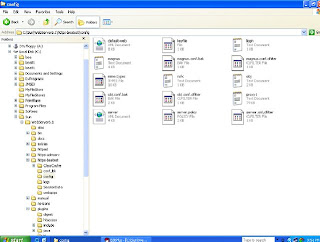

  • The next is to edit the magnus.conf and obj.conf files of Sun Server and make entry for WLS plug-in(SUNHOME \WebServer6.1\https-beatest\config).

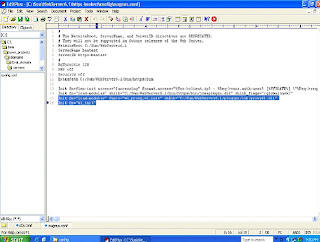

  • The entries that should be made in magnus.conf file are:
(1)A LoadModule entry in Loadmodule specification.
Init fn="load-modules" funcs="wl_proxy,wl_init" shlib="C:/Sun/WebServer6.1/plugins/lib/proxy61.dll"
Init fn="wl_init"

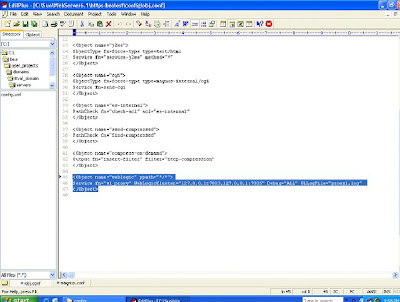

(2) Object specification in obj.conf for cluster environment.
Service fn="wl_proxy" WebLogicCluster="127.0.0.1:7003,127.0.0.1:7005" Debug="ALL" WLLogFile="proxy1.log"
127.0.0.1:7003,127.0.0.1:7005 is the cluster addresses to which the sun server redirects the request. The application is deployed on this cluster.

http://weblogicadmintutorials.blogspot.in/
(3) Object specification in module configuration for single server.
Service fn="wl_proxy"
WebLogicHost=127.0.0.1
WebLogicPort=7001
WLLogFile="proxy1.log"
  • After completing these specification start the Sun server.
  • Start the WLS admin server and all managed servers participating in the cluster.
  • Open the browser and type the request URL to the application deployed in the cluster.
Where CR is the context root of the deployed application.
